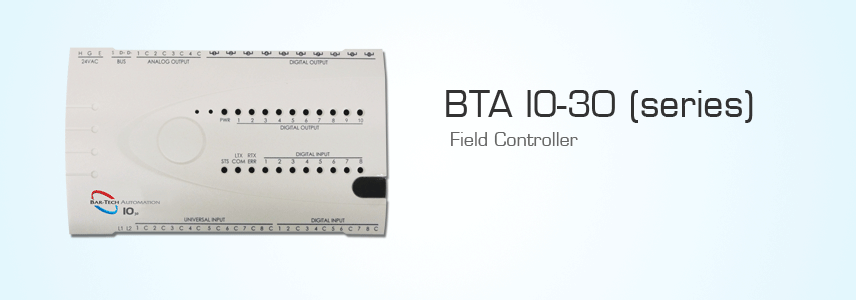

» BTA IO-30



  • Web browser configuration
  • Multiple protocol support
  • High speed data rates
  • Network security
  • Multiple I/O types
  • Robust system operation
  • Ease of installation
I/O Configuration
Universal Input: 8 Channels
Digital Input: 8 Channels
Digital Output: 8 Channels
Transistor Output: 2 Channels
Analogue Output: 4 Channels
Communication
Interface 1: RS-485
Interface 2: Ethernet 10/100
Chassis
Dimensions: 187mm x 110mm x 47mm
Environment
Operating Temp: 0°C to 65°C (32°F to 150°F)
Storage Temp: -20°C to 65°C (-4°F to 150°F)
Relative Humidity: 10% to 95%, non-condensing

OVERVIEW

The EasyIO 30P Series Controllers are rugged, network centric, high performance multi-protocol Input/Output controllers to accommodate general and specific applications. Featuring Modbus RS485, TCP/IP and BACnet RS485, IP and Ethernet protocols plus a built-in web server for easy configuration. EasyIO-30P can be configured to work as a bridge controller without any compromise on its embedded I/O functionalities.
