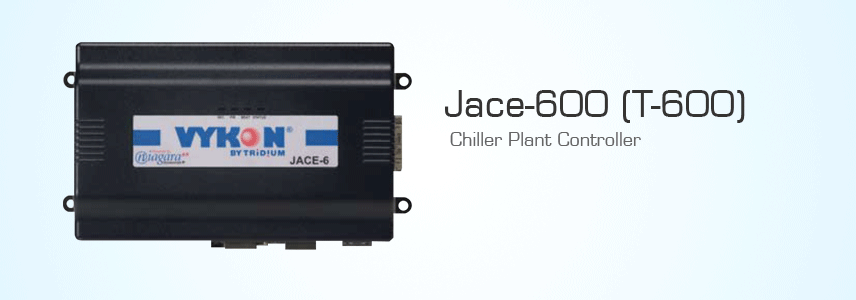

» JACE 6

  • Embedded Power PC platform @ 524MHz
  • Supports open and legacy protocols
  • Qnx real-time operating system
  • Web user interface serves rich presentations and live data to a browser
  • Run stand-alone control, energy management, and multi-protocol integration
  • Standard and optional communication boards
  • Can be expanded with optional 16 and 34 point I/O modules
  • Small compact design is easy to install and supports multiple power options

Platform
Processor Power PC 440 524MHz
RAM 128MB DDR & 128MB Serial Flash
Environment
Operating Temp: 0°C to 50°C (32°F to 122°F)
Storage Temp: 0°C to 70°C (32°F to 158°F)
Relative Humidity: 5% to 95%, non-condensing
Options
NPB-256 Memory upgrade 256MB DDR RAM
NPB-LON 78Kbps LON adapter
NPB-232 RS-232 port adapter with 9 pin connector
NPB-2X-485 Dual port RS-485 adapter (isolated)
NPB-PWR 24 Volt AC/DC power supply module (Din rail)
IO-34 34 point I/O module
IO-16 16 point I/O module

OVERVIEW

The Vykon JACE-600™ (Java Application Control Engine) is a compact, embedded controller/server platform. It combines integrated control, supervision, data logging, alarming, scheduling and network management functions with Internet connectivity and web serving capabilities in a small, compact platform. The JACE-600 makes it possible to control and manage external devices over the Internet and present real-time information to users in web-based graphical views.

The JACE-600 is a member of the Vykon suite of Java based controller/server products, software applications and tools, which are designed to integrate a variety of devices and protocols into unified, distributed systems. Vykon products are powered by the revolutionary NiagaraAX Framework®, the industry’s first software technology designed to integrate diverse systems and devices into a seamless system. Niagara supports a wide range of protocols including LonWorks™, BACnet™, Modbus, oBIX and Internet standards. The AX Framework also includes integrated network management tools to support the design, configuration, installation and maintenance of interoperable networks.
