» JACE 2

  • Embedded Power PC platform @ 250MHz
  • Supports open and legacy protocols
  • Web user interface serves rich presentations and live data to a browser
  • Run stand-alone control, energy management, and multi-protocol integration
  • Standard and optional communication boards
  • Can be expanded with optional 16 and 34 point I/O modules
  • Small compact design is easy to install and supports multiple power options

Platform
Processor Power PC 405EP 250MHz
RAM 64MB SDRAM & 64MB Serial Flash
RAM 128KB Static RAM
Chassis
Dimensions: 160mm x 122mm x 62mm
Environment
Operating Temp: 0°C to 50°C (32°F to 122°F)
Storage Temp: 0°C to 60°C (32°F to 140°F)
Relative Humidity: 5% to 95%, non-condensing
Options
NPB-128 Memory upgrade 128MB SDRAM
NPB-LON 78Kbps LON adapter
NPB-232 RS-232 port adapter with 9 pin connector
NPB-2X-485 Dual port RS-485 adapter (isolated)
NPB-PWR 24 Volt AC/DC power supply module (Din rail)
IO-34 34 point I/O module
IO-16 16 point I/O module

OVERVIEW

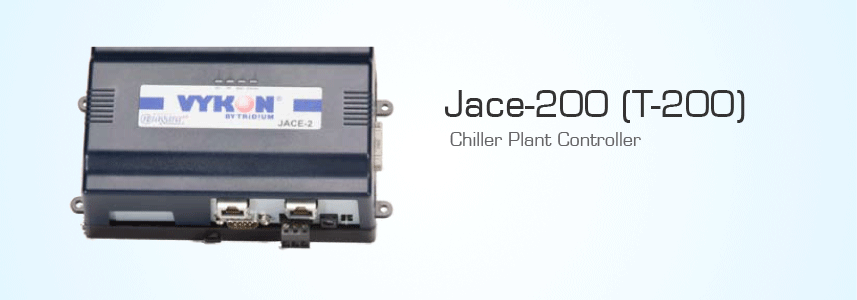

The Vykon JACE-200™ (Java Application Control Engine) is a compact, embedded controller/server platform. It combines integrated control, supervision, data logging, alarming, scheduling and network management functions with Internet connectivity and web serving capabilities in a small, compact platform. The JACE-200 makes it possible to control and manage external devices over the Internet and present real time information to users in web-based graphical views.

The JACE-200 is a member of the Vykon suite of Javabased controller/server products, software applications and tools, which are designed to integrate a variety of devices and protocols into unified, distributed systems. Vykon products are powered by the revolutionary NiagaraAX Framework®, the industry’s first software technology designed to integrate diverse systems and devices into a seamless system. Niagara supports a wide range of protocols including LonWorks™, BACnet™, MODbus, oBIX and Internet standards. The AX Framework also includes integrated network management tools to support the design, configuration, installation and maintenance of interoperable networks.
